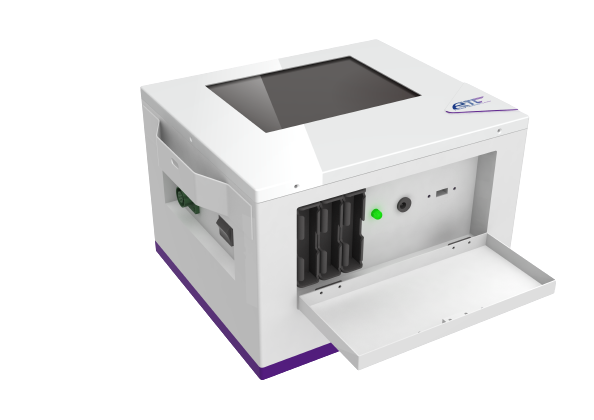

Rail Responder/ Beacon Reader and Writer System

Model
  • RTC-HYT-100
Features
  • 8" Touchscreen (800*600 pixel image)
  • Contemporary Style (with strap and waterproof cover)
  • 4.000 rows of Data
  • Apply for Passive Responder (No Power Supply)
  • Easy to Carry (Separate Responder and Writer System)
  • Update Mileage Data via USB
  • Built-In Three 18650 Batteries
  • Working Long Hours
  • User-Friendly Interface
Specification
  • Responder Dimension：305*235*185MM
  • Writer System Dimension:280*250*75MM
  • Ingress Protection Rating IP51 (with Waterproof Cover)
  • Voltage：19V/2A
  • Reader and Writer Comsumption：11.4/23.4W
  • FSK Modulation：1708±32KHZ
  • Radio wave：757KHZ
Railway Certified
  • Railway Certified EN 50155 (IEC60571) Approved
  • Railway EMC Standard EN 50121-3-2 Approved
