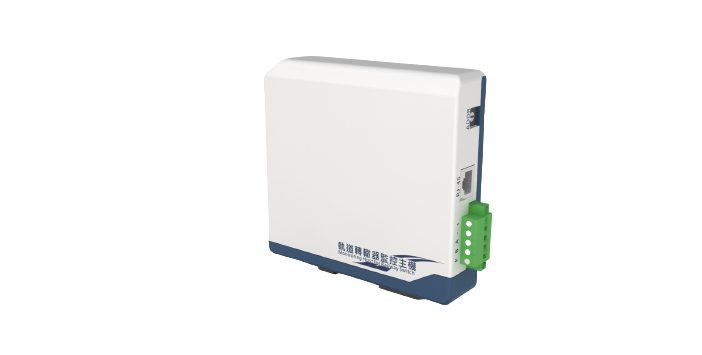

Monitoring System for Fork and Switch

Model
  • RTC-KUY-43
Features
  • 5 Kinds of Sensors Available (Force/Current/Open/Close/RTD)
  • Isolated Tunnel Sensors (64 Sets Maximum)
  • Sampling Accuracy:12 bit ±1 LSB
  • Managing 384 thousand rows of data per Minutes
  • Bridge-Type Sensor、Voltage Sensor、Digital Sensor Support
  • Maximum Operating Temperature is 80°C
  • Thermal Protection
  • Isolated Digital I/O
  • Power Supply Sensor
  • Sensor Failure Detection
  • Parallel communication
Specification
  • Dimension:L132*W149.2*H30MM
  • Weight:250g
  • Voltage:+18~36V
  • Interface1:Full-Duplex/Half-Duplex 10/100BaseT(X) Ethernet
  • Interface2:RS-485
Railway Certified
  • Railway Certified EN 50155 (IEC60571) Approved
  • Railway EMC Standard EN 50121-3-2 Approved
  • Cooling, Dry & Damp Heat Test IEC/EN 60068-2-1, 2, 30 Approved
  • UL/cUL/IEC/EN 62368-1 (60950-1) Safety Approval & CE Marking
