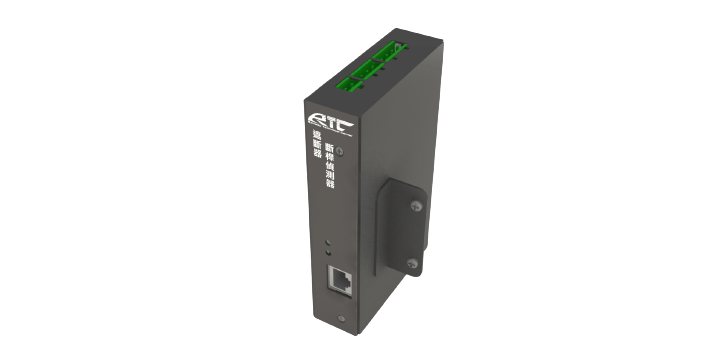

Level Crossing Gate Obstacle Detector

Model
  • RTC-GH01-13
Features
  • Isolated Current Detector
  • Available to Store 3072 sets of Transaction Log
  • Real-time notification system for judging broken bars on level crossings with intelligent algorithms
  • Rod Weight Calculator，Emergency Notification
  • IOT detection service
  • Can be customized for different crossing gate
  • Maximum Operating Temperature is 80°C
  • Thermal Protection
Specification
  • Voltage：+18~36V
  • Interface1：Full-Duplex/Half-Duplex 10/100BaseT(X) Ethernet
  • Interface2：RELAY OUTPUT
Railway Certified
  • Railway Certified EN 50155 (IEC60571) Approved
  • Railway EMC Standard EN 50121-3-2 Approved
  • Cooling, Dry & Damp Heat Test IEC/EN 60068-2-1, 2, 30 Approved
  • UL/cUL/IEC/EN 62368-1 (60950-1) Safety Approval & CE Marking
[Download Leaflet]
