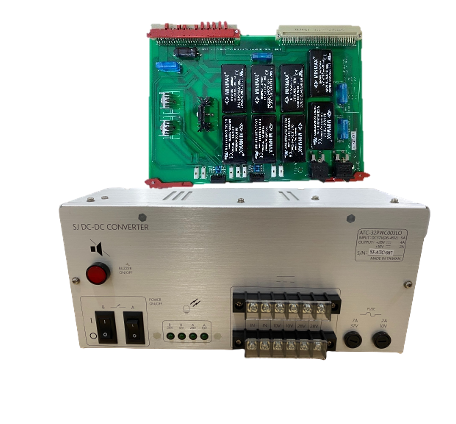

Power System

Model
  • RTC-ATP20-C1
  • RTC-ATS02-GF
  • RTC-ATC72-GD
Features
  • Maximum Operating Temperature is 90°C
  • Self-Protection in high temperature environment
  • Double Backup System/Auto Alarm Switch
Specification 1
  • Dimension:L233*W160*H30MM
  • Weight:550g
  • Input:28VDC±5%(26.6~29.4VDC)/2.83A
  • Output:5V/5A、+12V/1.25A、-12V/1.25A
Specification 2
  • Dimension:L233*W220*H30MM
  • Weight:620g
  • Input:28VDC±5%(26.6~29.4VDC)/2.83A
  • Output:5V/5A、+12V/1.25A、-12V/1.25A
Specification 3
  • Dimension:L316*W132*H103MM
  • Weight:2.8Kg
  • Input:37VDC(26~45VDC) 5A
  • Output:28V/4A、10V/2A
Railway Certified
  • Railway Certified EN 50155 (IEC60571) Approved
  • Railway EMC Standard EN 50121-3-2 Approved
  • Cooling, Dry & Damp Heat Test IEC/EN 60068-2-1, 2, 30 Approved
  • UL/cUL/IEC/EN 62368-1 (60950-1) Safety Approval & CE Marking
