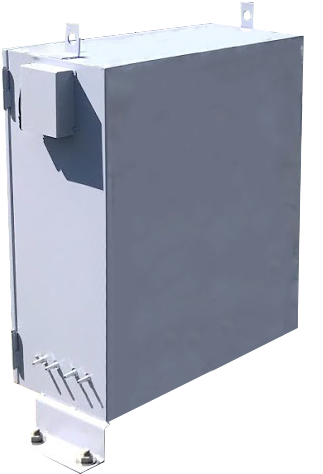

Intelligence Rail lubrication system
Model
- RTC-GYE-011
Features
- Lubrication systems passing trains are detected by track-mounted wheel sensors
- Touchscreen Interface
- 10 Inch Display Screen
- With Train Direction Setting
- Lubricating Device for Moving
- Tread Surface and Lateral Surface Lubricating Support
- Maximum Operating Temperature is 80°C
- Thermal ProtectionRailway Certified
- Solar Energy、Commercial Power Supply
- Preset Lubrication Time、Waiting Time and Upper Action Limit
- Railway Noise Recording
- Adjust Oil Flow
- Dehumidification
- Use Split Function
Specification
1
- Dimension：600mm*550mm*1200mm
- Solar PanelOuptut Voltage :DC 10~43.2V、150W
- Solar Charging Controller Input Voltage：DC 24~50 V
- Solar Charging Controller Ouptut Voltage : DC 24~28.8V
- Grease Machine：DC 24V、6500PSI、650W
- Compressor：DC 24V、150PSI、480W
- Battery：DC 12V/60Ah Maintenance Free* 2
- Control Voltage：DC 24V
Specification
2
- Dimension：600mm*550mm*1200mm
- Transformer Input Voltage：AC 110VSolar
- Transformer Ouptut Voltage : DC 24V / 1000W
- As above specification, no battery
Railway Certified
- Railway Certified EN 50155 (IEC60571) Approved
- Railway EMC Standard EN 50121-3-2 Approved
- Cooling, Dry & Damp Heat Test IEC/EN 60068-2-1, 2, 30 Approved
- UL/cUL/IEC/EN 62368-1 (60950-1) Safety Approval & CE Markingz
