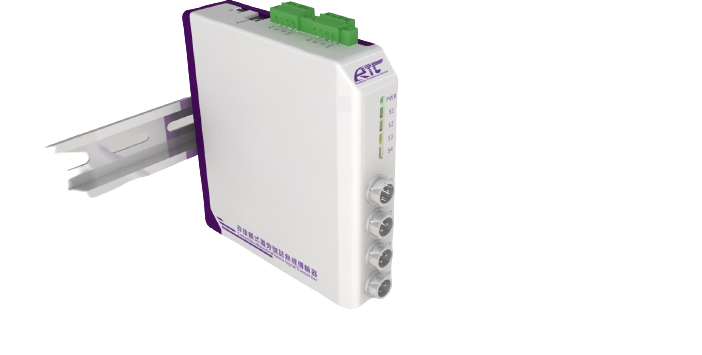

Contactless Wayside Relay Signal Transmitter

Model
  • RTC-RTY-014
Features
  • External-Magnetic Inductance Sensing System
  • Low Power Consumption Wireless Transmitter
  • LoRa Transmission Technology(1km~15km)Wireless Transmission
  • 16 Sets Parallel Communication (64 Sensing Channel)
  • Transmit Traffic Signals to Engineering Car (Warn of Overruns)
  • Secure 128 bits Wireless Transmission of Data via Encryption
  • Secure Deliver Voltage、Current、I/O to Rails
  • Maximum Operating Temperature is 80°C
  • Thermal Protection
Specification
  • Dimension：L132*W149.2*H30MM
  • Weight：250g
  • Voltage：24VDC
  • Farthest transmission distance：5km
  • Communication Interface：
  • Internal：RS-485
  • External：Lora
  • Band 27Mhz ~ 900Mhz (Customized)
Railway Certified
  • Railway Certified EN 50155 (IEC60571) Approved
  • Railway EMC Standard EN 50121-3-2 Approved
  • Cooling, Dry & Damp Heat Test IEC/EN 60068-2-1, 2, 30 Approved
  • UL/cUL/IEC/EN 62368-1 (60950-1) Safety Approval & CE Marking
