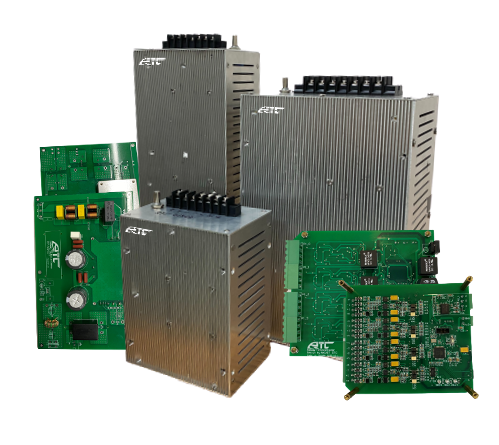

Power Supply System for Control Rods in Nuclear Power
Model
- RTC-HMO2-CG
Features
- Qualified for 13 safety rules of Nuclear electromagnetic Compatibility test RG1.180(MIL-STD-461G)
- CS101、CS114、CS115、CS116、RE101、RE102、CE101、CE102、RS101、RS103、IEC61000-4-4、IEC61000-4-5、IEC61000-4-12
- Use under the premise of compliance with power quality control and isolation of magnetic field sensitive equipment
- Safety rule CISPR11 CLASS A for specification IEC 61000-6-4
- Maximum Operating Temperature is 100°C
- Operating for 24 Hours a day
Specification
1
- Dimension:L335*W87.5*H130MM
- Input：110VAC
- Output：100V/2.5A
Specification
2
- Dimension:L284*W187*H130MM
- Input：110VAC
- Output：15V/12A
Specification
3
- Dimension:L165*W87.5*H130MM
- Input：110VAC
- Output：-15V/3A
Railway Certified
- Stabilization Bake：MIL-STD-883 Method 1008, Cond. B
- Temperature Cycling：MIL-STD-750 Method 1051,Cond. A, B, F, G
- MIL-STD-883 Method 1010, Cond. A, B, C
